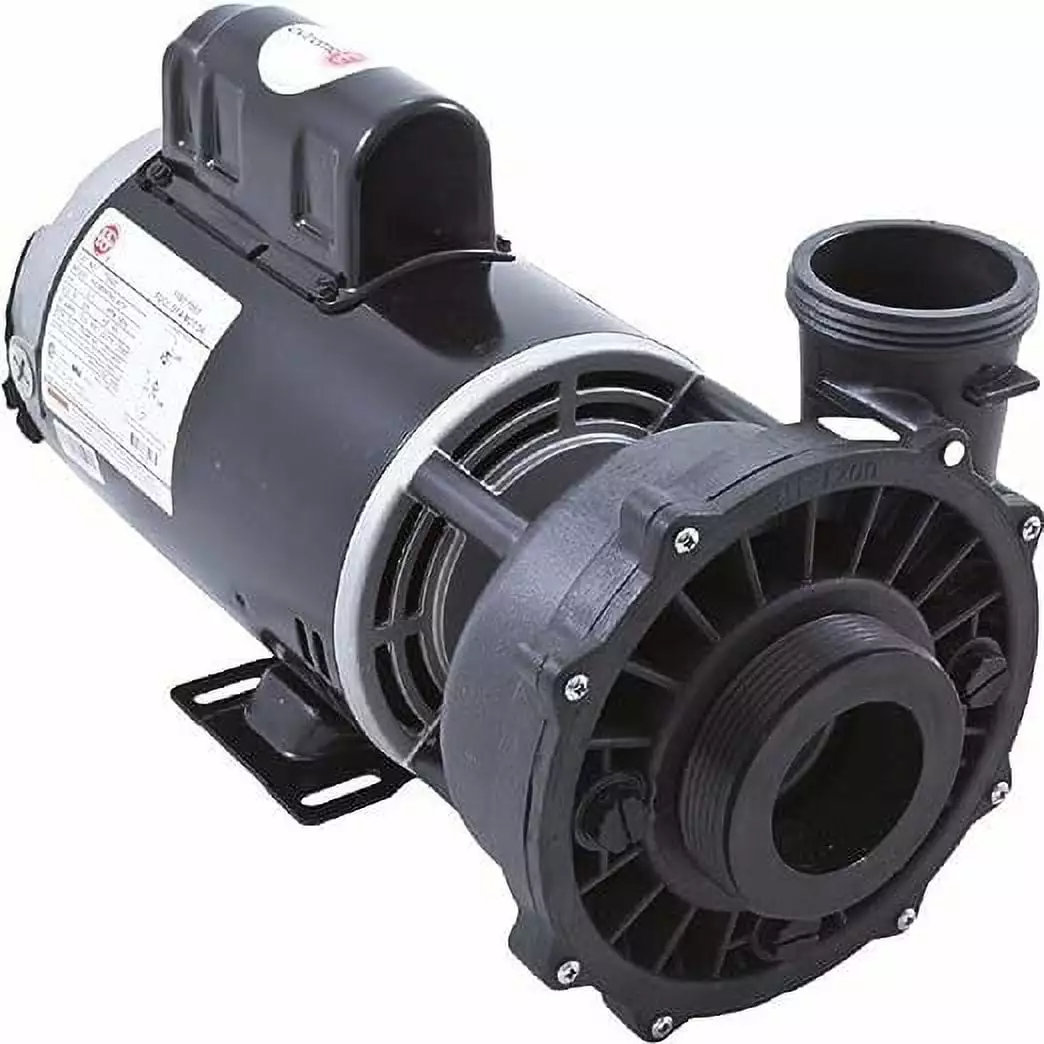

Waterway 3711621-13 4HP 230V 1-Speed 56 Frame Executive Pump for Swimming Pools

The Executive 56 Frame Spa Pump has an executive wet end designed for 56-Frame motors along with two double-shielded ball bearings with moisture-resistant grease for quieter operation and long life. With Viton Seals and a split capacitor (start and run) for less energy consumption. along with a three year warranty on its motor and wet end. the Executive is a must. Center vs. Side Discharge Pumps Swimming pool and spa pumps are classified. in part. according to the orientation of their discharge openings. Center discharge pumps have an opening located in the center of the wet end. while side discharge pumps have an opening located on the side of the wet end. Water is propelled through the openings and flows out through the jets in your spa. Side discharge pumps are up to 60% more efficient for pumping out high volumes of water than center discharge pumps. What the frame size on a spa pump mean? The frame size on a spa pump is the physical size of the spa pump motor. The frame is the piece that mounts the wet end to the motor. The frame size is located on the motor’s ID plate. usually marked with an F for frame size. The thru-bolt spacing is also an indicator of frame size. A 48 frame motor has bolts spaced less than 4 inches apart. and the 56 frame motor has bolts with spacing more than 4 inches apart.

• Executive wet end designed specifically for 56-frame motors
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• 56-frame motor for added strength. cooler operating temperature. and longer motor life
• Larger 2-1/2 intake for improved flow performance and reduced noise
• Large 6-1/2 diameter wet end for higher head pressure
• Type: Standard Pool Pump
