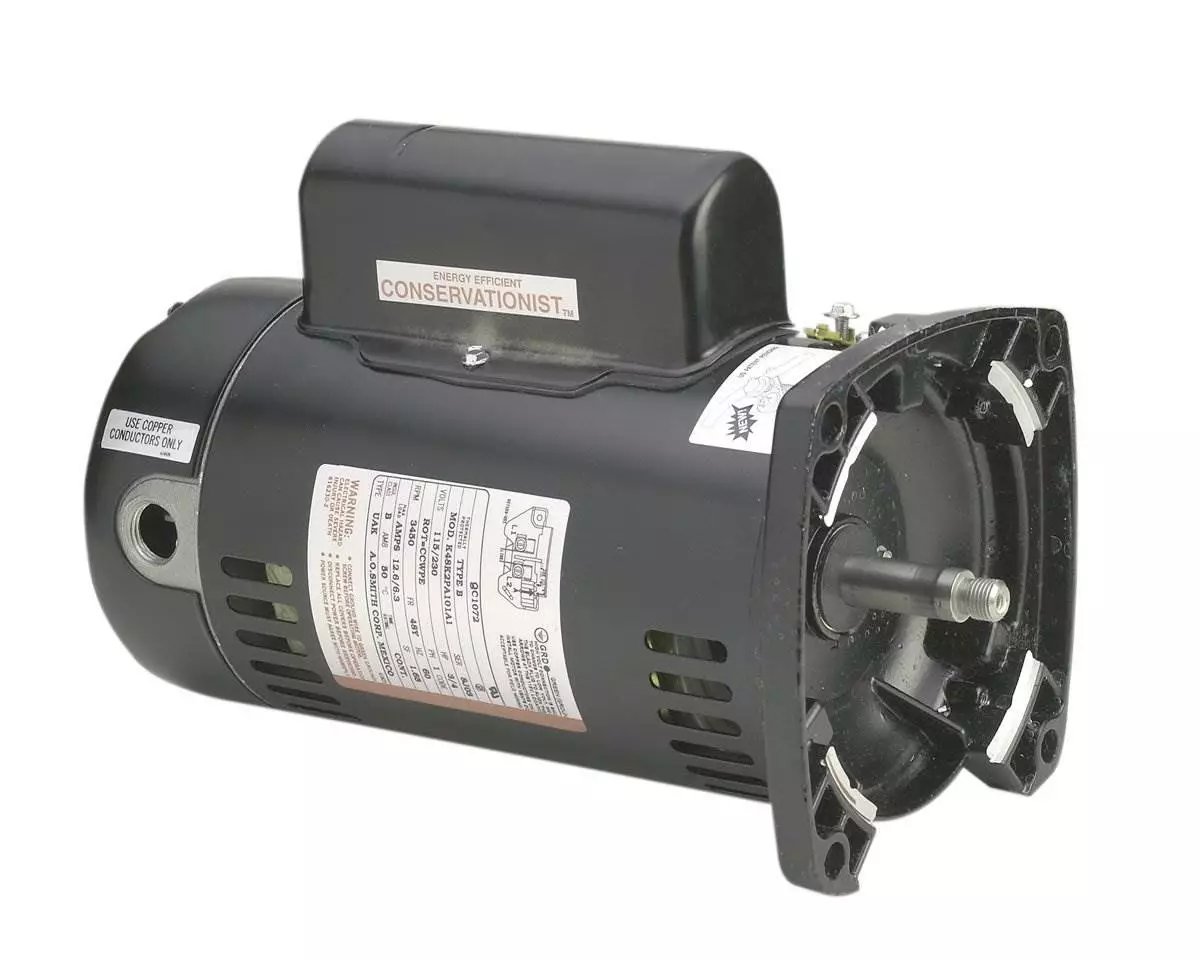

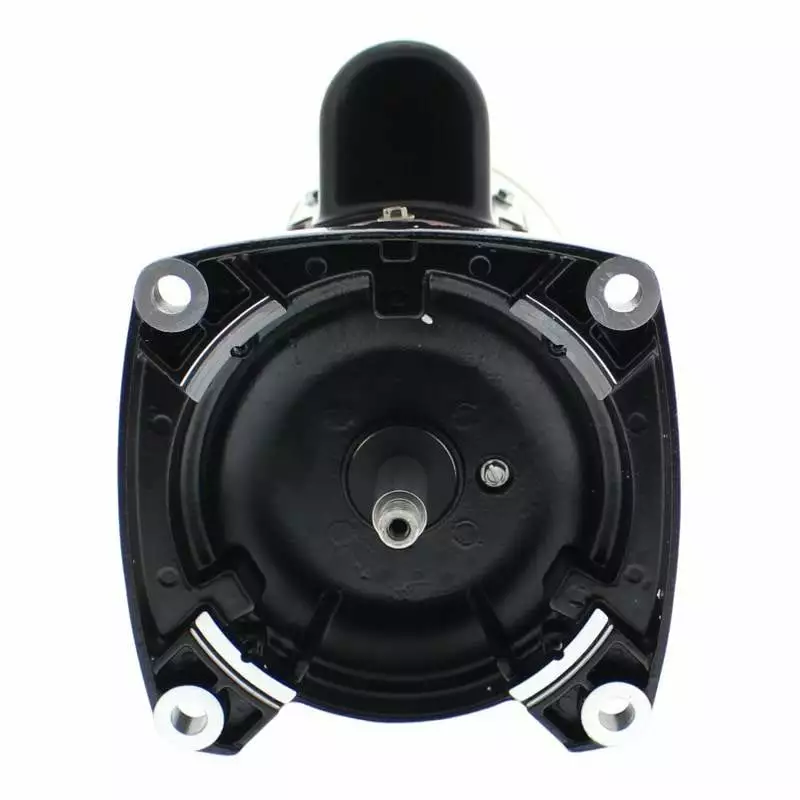

A.O. Smith SQ1152 Full Rated 1.5 HP 3.450 RPM Single Speed Pool/Spa Pump Motor
$96.86
15
People watching this product now!
Description
When your old pool pump motor calls it quits. have a replacement A.O. Smith 1.5-HP 3.450 RPM Single-Speed Pool Pump Motor ready to swap in so you can get back enjoying your relaxing day on the water. This 1.5-horsepower full-rated replacement motor for above and in-ground swimming pool pumps has a threaded shaft and fits most pumps that require a 48Y frame square-flange motor. It operates on 208-230 volts and has a 3.450 RPM. The motor features a 1.47 service factor. an automatic surge protector. capacitor start. and an open drip-proof housing for cooler operation. The SQ1152 pool pump motor is compatible with pump series models like Sta-Rite Dura-Glas. Dura-Glas II. Max-E-Glas. Max-E-Glas II. Dyna-Glas. and Max-E-Pro. Hayward Max-Flow II. Pentair Whisper-Flo. Challenger. Ultra-Flow. Pinnacle. and Anthony AR2. A.O. Smith Century offers the very best in US-manufactured electric motors. With a comprehensive line of electric motors for commercial. industrial. and residential pump and general-purpose applications. century is a highly recognized brand in the leisure water industry for its breadth of product offering. quality. and reliability.
- Full-rated 1.5-horsepower 3.450 RPM 48Y frame square-flange replacement pool pump motor
- For use with above and in-ground swimming pools
- Part Number: SQ1152
- 208-230-volt power; open drip-proof housing ensures cooler operation and extends the life of your motor
- Compatible pumps include: Sta-Rite Dura-Glas. Dura-Glas II. Max-E-Glas. Max-E-Glas II. Dyna-Glas. Max-E-Pro. Hayward Max-Flow II. Pentair Whisper-Flo. Challenger. Ultra-Flow. Pinnacle. and Anthony AR2 series
- Specifications:
- Product type: Pool pump motor
- Service factor: 1.47
- Voltage: 208-230 volts
- Horsepower: 1.5 HP
- RPM: 3.450
- Amperage: 10.4-9.8 amps
- Hertz: 60
- Surge protector: Automatic
- Start type: Capacitor
- Insulation: Class B
- Motor phase: Single-speed
- Rotation: CCW pump end
- Bearing type: Sealed ball bearings
- Max load: 208-230-volt: 10.4-9.8 amps
- Flange type: Square
- Shaft type: Threaded 303 stainless steel
- Motor frame size: 48Y
- Motor housing: Open drip-proof
- Pool type: Above-ground. in-ground
- Material: Stainless steel
- Color: Black
- Dimensions (L x W x H): 14 x 8.5 x 6.5 inches
- Weight: 30 pounds
- Manufacturer warranty: 1-year warranty
Specifications
| Brand | A. O. Smith |
| Manufacturer Part Number | SQ1152 |
| Assembled Product Dimensions (L x W x H) | 1.00 x 1.00 x 1.00 Inches |
