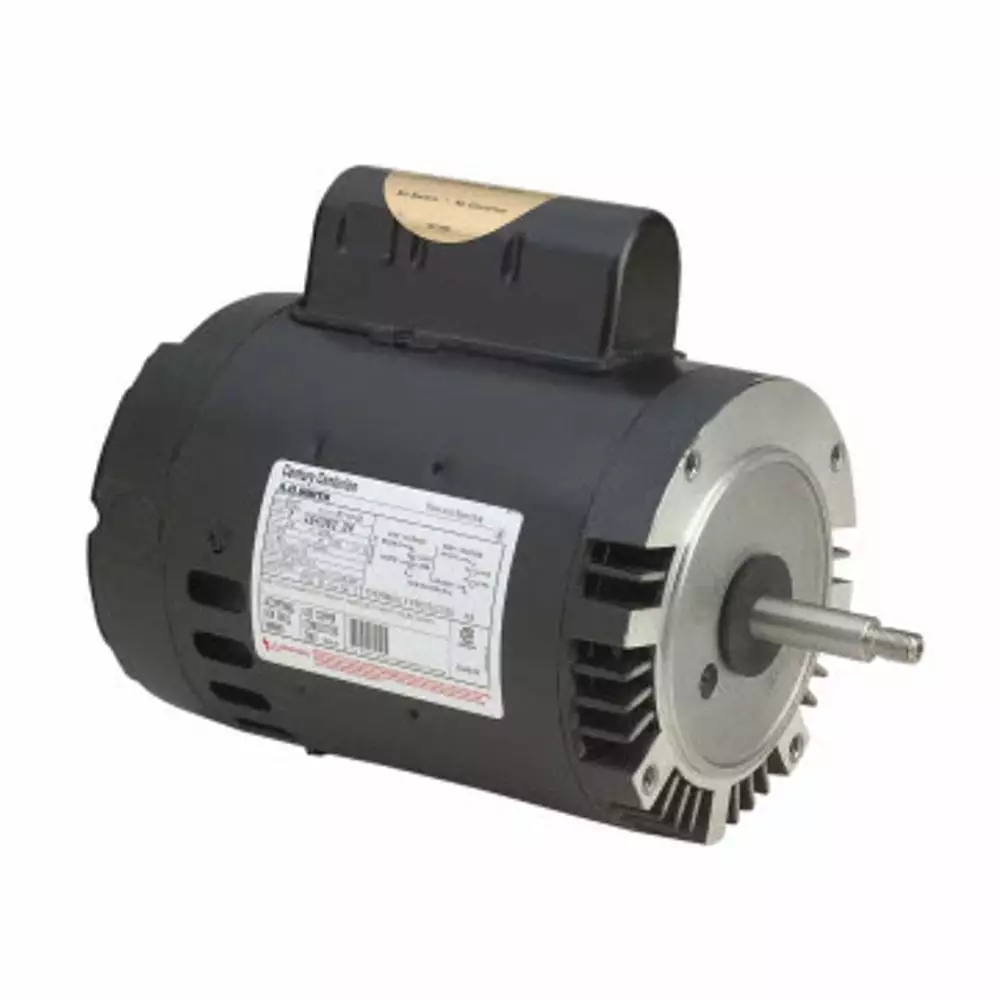

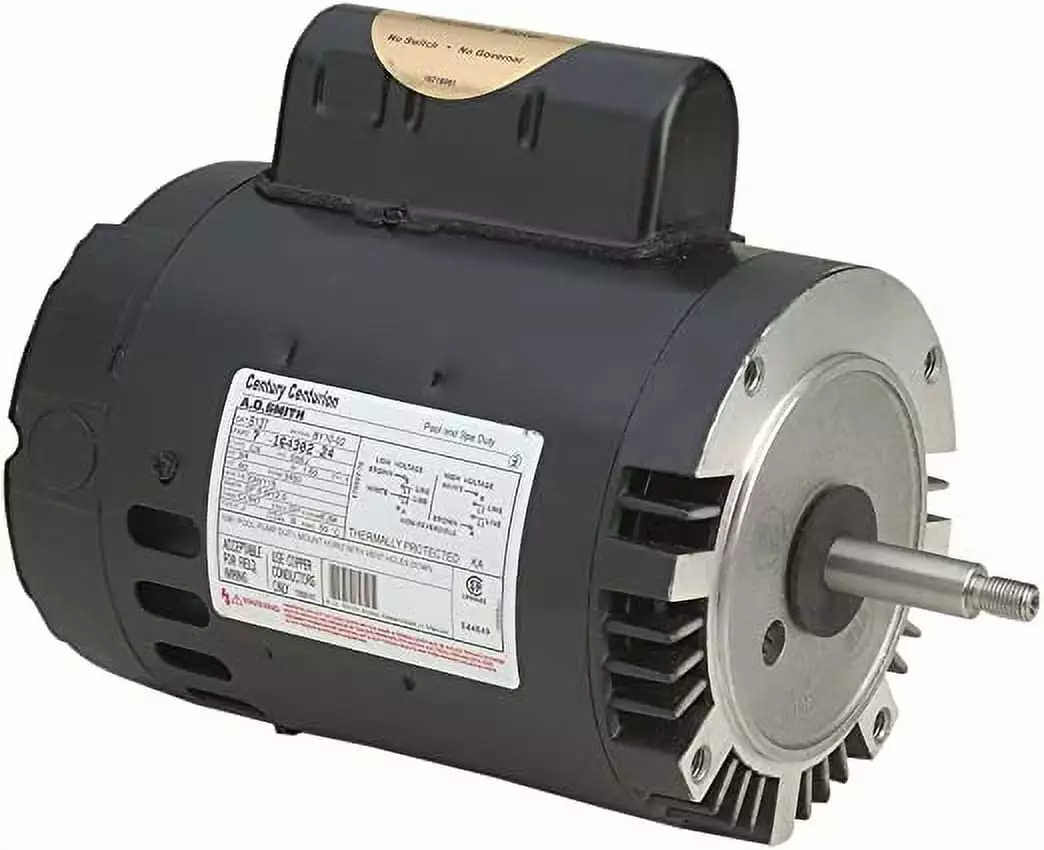

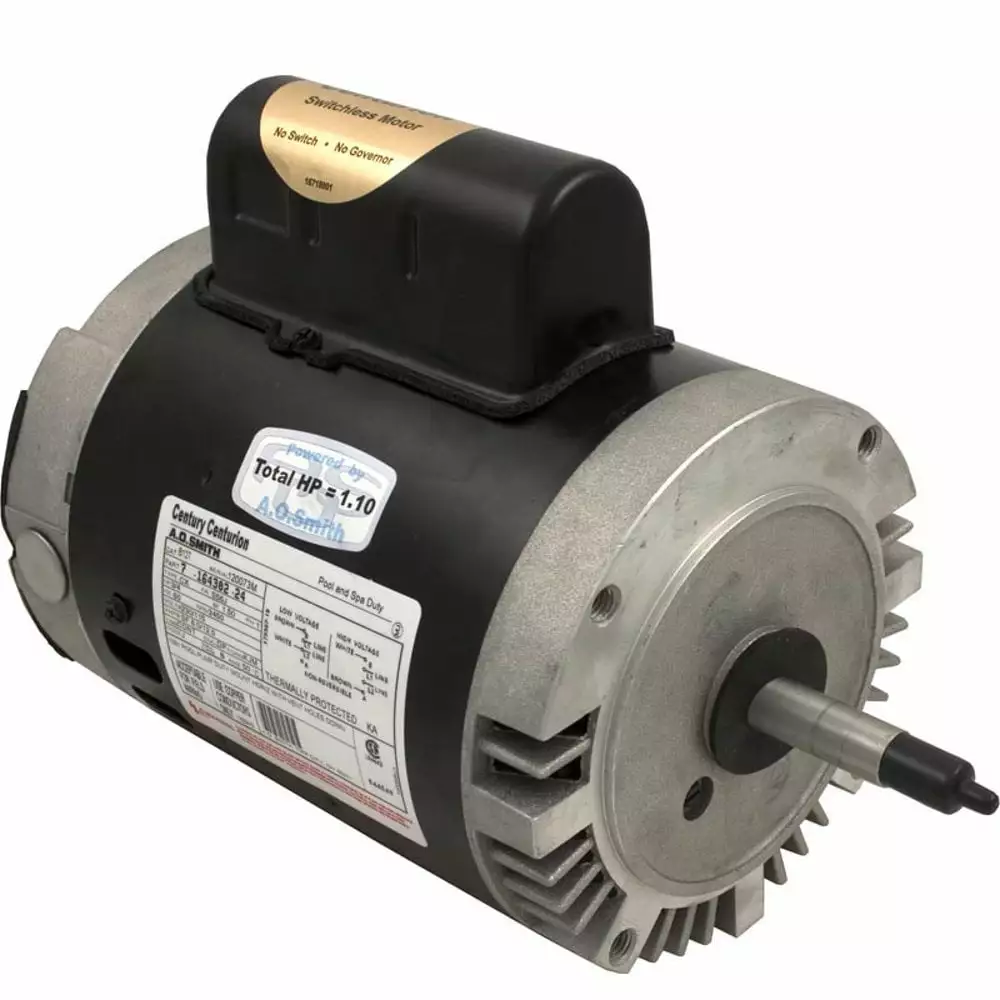

A.O. Smith Century B127 .75HP 115/230V Full Rated Replacement Pool Pump Motor

The Regal Beloit B127 3/4 HP Centurion 1081 Full-Rated C-Face Flange Motor is part of the Century pool and spa pump motors specifically Centurion 1081 Full Rate Aluminum NEMA C-Brackets with C-Face Flange series. This is a single-phase pump motor that features a permanent split capacitor and a switchless design. It also has 304 Bearing Shaft End with a 50-degree Celsius ambient temperature and 303 stainless steel threaded shafts. With a UL 1081 Design and an open drip proof enclosure. it also features a rigid base. a class B insulation and a Counterclockwise Pump End rotation. This motor has an output of 0.75 HP. 3.450 RPM speed. 230/115 Voltage. 6.0/12.0 Amperes. and an S56J frame. With ball drive end bearing and a rolled steel frame material. its dimensions include an overall length of 12.01 inches. frame length of 6.38 inches. shaft extension of 2.57 inches. and a shaft diameter of 0.625 inches.

• Fits 0.75 HP Hayward Super Pump. Super II. Max-Flo &Northstar pumps
• Automatic Overload Protection. Service Factor 1.50
• Non-Reversible – CCW Rotation facing the shaft. C-Face Mount. Round Body-no base
• Insulation Class B and Stainless steel shafts
• Efficiency Group Standard
