A.O. Smith Century ST1202 Full Rated 2 HP 3.450 RPM Single Speed Pool Pump Motor $113.47
Click to enlarge

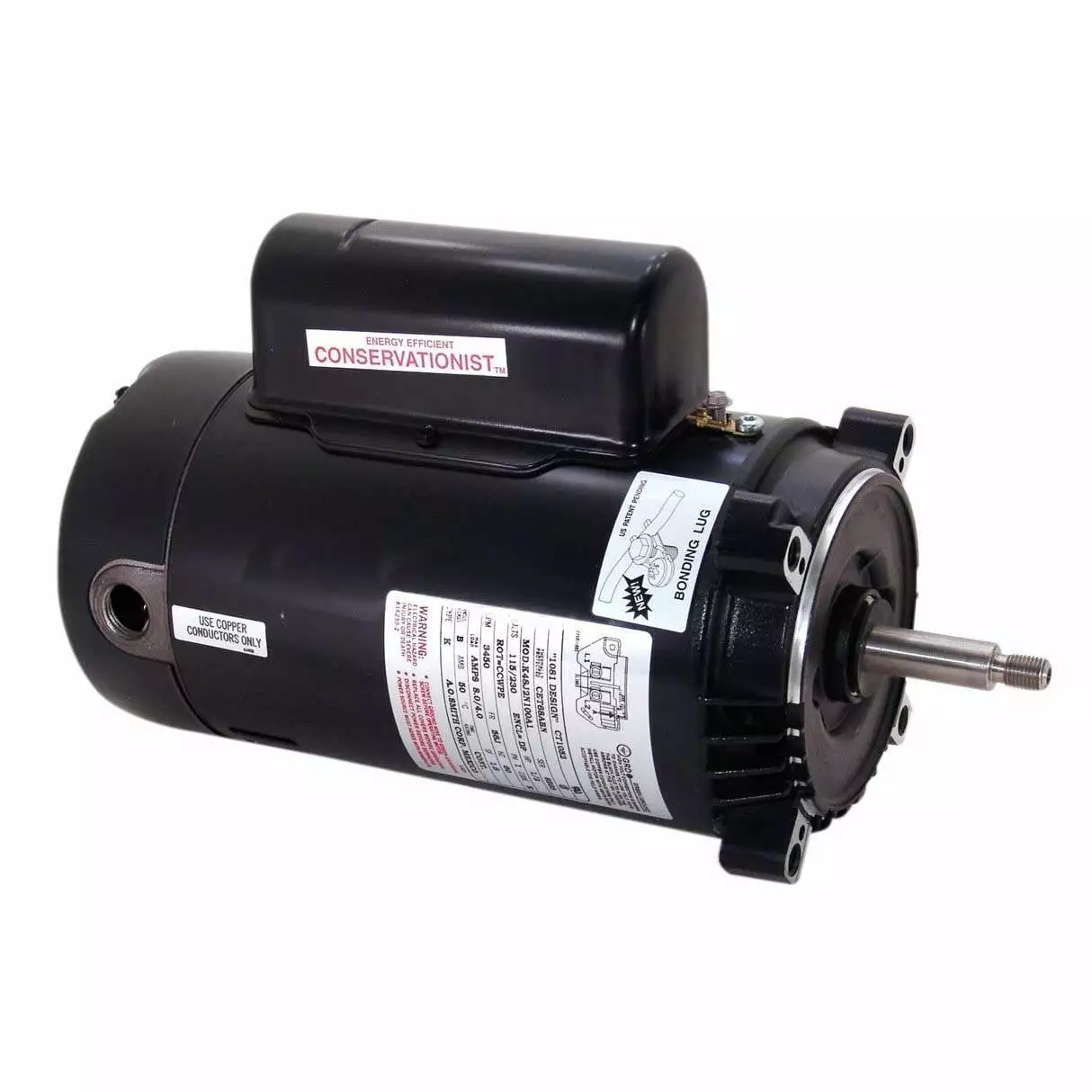

1 hp 3450 RPM 56J Frame 115/230V Switchless Swimming Pool Pump Motor Century # B654

$102.60

Add to wishlist
Compare
16 People watching this product now!

Description

Automatic Overload Protection – Service Factor 1.40

  • 1 HP 3450 RPM 56J. 11.8/5.9 amps. 115/230V 60hz.
  • Automatic Overload Protection – Service Factor 1.40
  • Non-Reversible – CCW Rotation facing the shaft
  • C-Face Mount. Round Body-no base
  • 56-J Frame; 5/8 diameter threaded stainless steel shaft

Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump. Maxflo. Super II and many other pumps requiring a 56J frame motor. This is a High Service factor motor. Amps are stated based on the full service factor. Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Centurion switchless design. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8 on center. measured across the shaft. Wiring diagram on motor name plate. 1 year manufacture warranty. US Electric Equivalent EB654

Specifications

Features ambient (c): 50. service factor: 1.40. phase: 1. nema/iec frame: 56j. shaft length (in.): 2-9/16. efficiency group: high. bearings: ball. full load amps: 11.8/6.4-5.9. motor type: permanent split capacitor. mfr. stock no.: b654. finish: black. mounting: face. hz: 60. hp: 1. item: pool and spa pump motor. enclosure: open dripproof. insulation class: b. shaft dia. (in.): 5/8. rotation: ccwse. rpm range: 3001-3600. nameplate rpm: 3450. shaft. thermal protection: auto
Brand Century Electric Motor
Manufacturer Part Number B654
